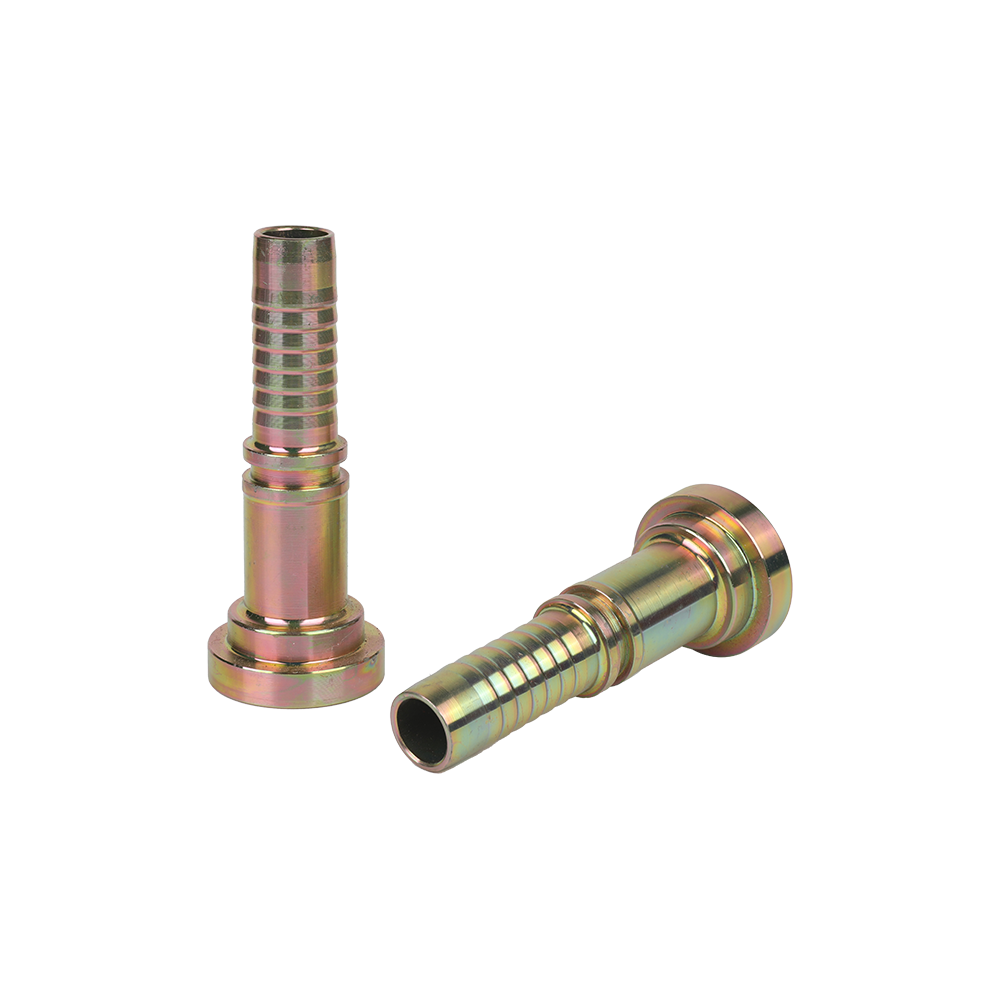

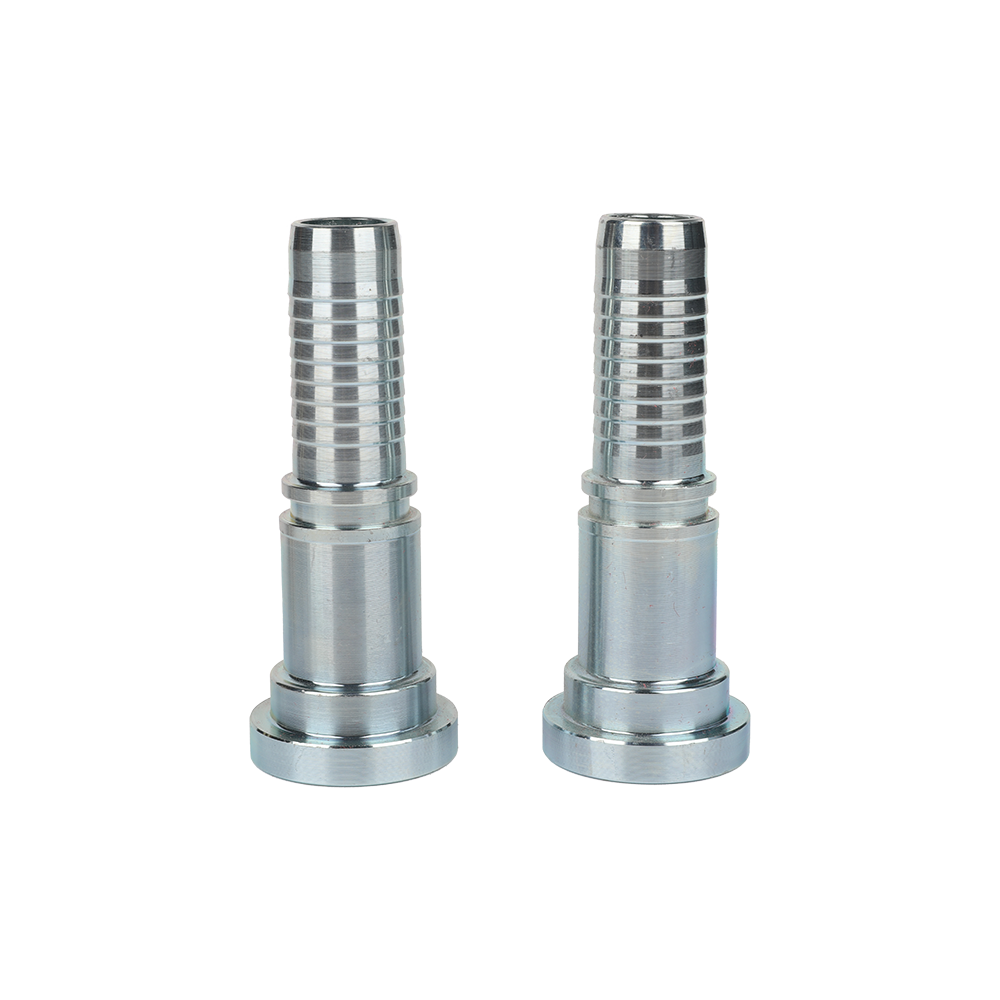

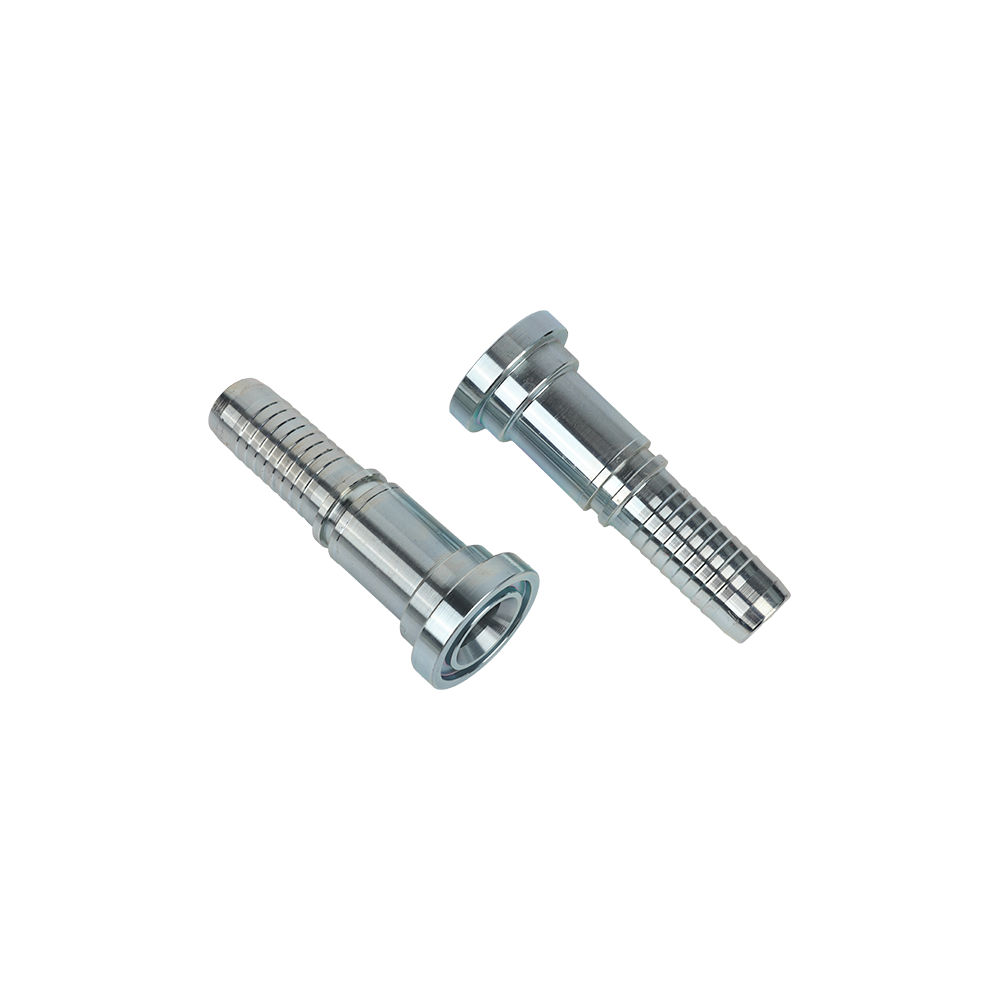

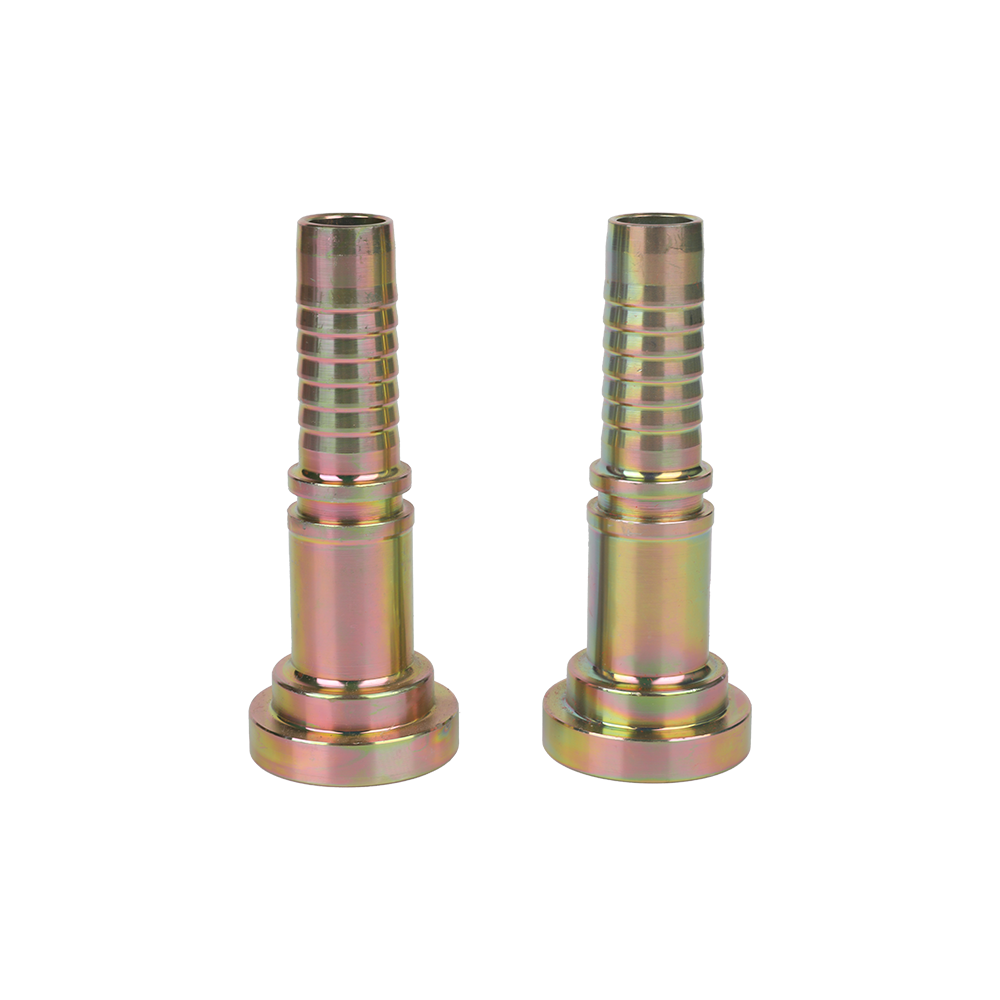

SAE Flange 87311 Hydraulic Hose Coupling Flange Fittings

SAE Flange

SAE Flange 87311 Hydraulic Hose Coupling Flange Fittings are flange fittings for hydraulic hose connections. It is designed with SAE (American Society of Engineers) standards to provide a reliable hydraulic hose connection and sealing solution.

SAE Flange 87311 fittings have a flanged connection design for hose connections in hydraulic systems. It consists of two flange halves, each with a set of tapped and bolt holes. This design allows the hydraulic hose to be tightly connected to the fittings and secured by bolts and nuts, providing a reliable connection and seal.

This fitting is suitable for all kinds of hydraulic systems, including industrial equipment, construction machinery, agricultural machinery and other fields. It can be used in applications such as high pressure hydraulic transmission, fluid control and hydraulic power transmission.

SAE Flange 87311 fittings offer ease and flexibility during installation and use. It can be used with hydraulic hoses of various specifications and fixed by appropriate fastening devices to achieve fast and stable connections.

Specifications
Leave Us A Message

Part NO.	Thread	Hose		Dimension (mm)
Part NO.	Thread	DN	Dash	A	C	D	L
87311-08-08	1/2"	12	08	46	30.2	24	6.73
87311-12-08	3/4"	12	08	47	38.1	31.7	6.73
87311-12-10	3/4"	16	10	48	38.1	31.7	6.73
87311-12-12	3/4"	20	12	48	38.1	31.7	6.73
87311-12-16	3/4"	25	16	49	38.1	31.7	6.73
87311-16-12	1"	20	12	51	44.4	38	8
87311-16-16	1"	25	16	52	44.4	38	8
87311-16-20	1"	32	20	53	44.4	38	8
87311-20-16	1.1/4"	25	16	57	50.8	43	8
87311-20-20	1.1/4"	32	20	58	50.8	43	8
87311-24-20	1.1/2"	32	20	68	60.3	50	8
87311-24-24	1.1/2"	40	24	68	60.3	50	8
87311-32-24	2"	40	24	70	71.4	62	9.53
87311-32-32	2"	50	32	70	71.4	62	9.53
87311-40-40	2.1/2"	64	40	76	84.1	74	9.53

Note:1、For braided hoses. 2、If for spiral hoses,Part No.is H87312- -XX-XX.
