Hose Ferrule 00110 Hydraulic Hose Sleeve Fittings For Hydraulic Machines

Hose Ferrule

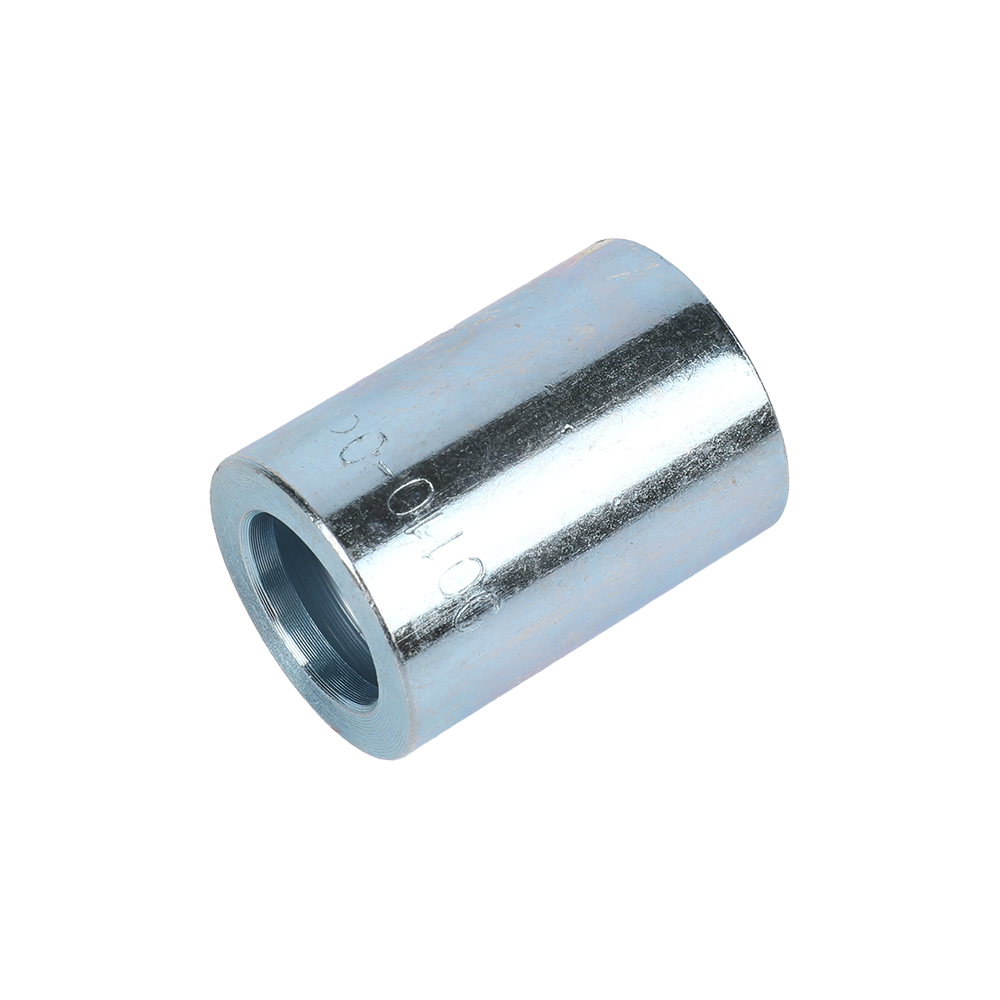

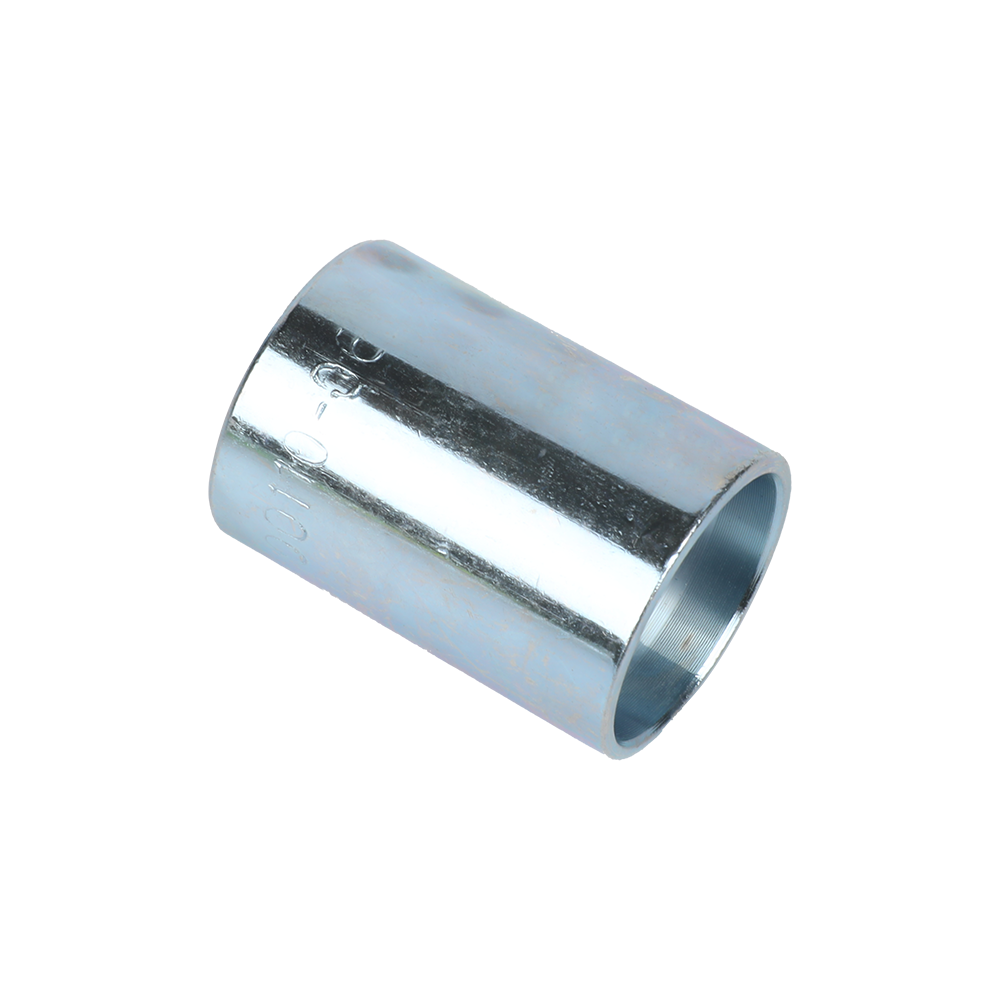

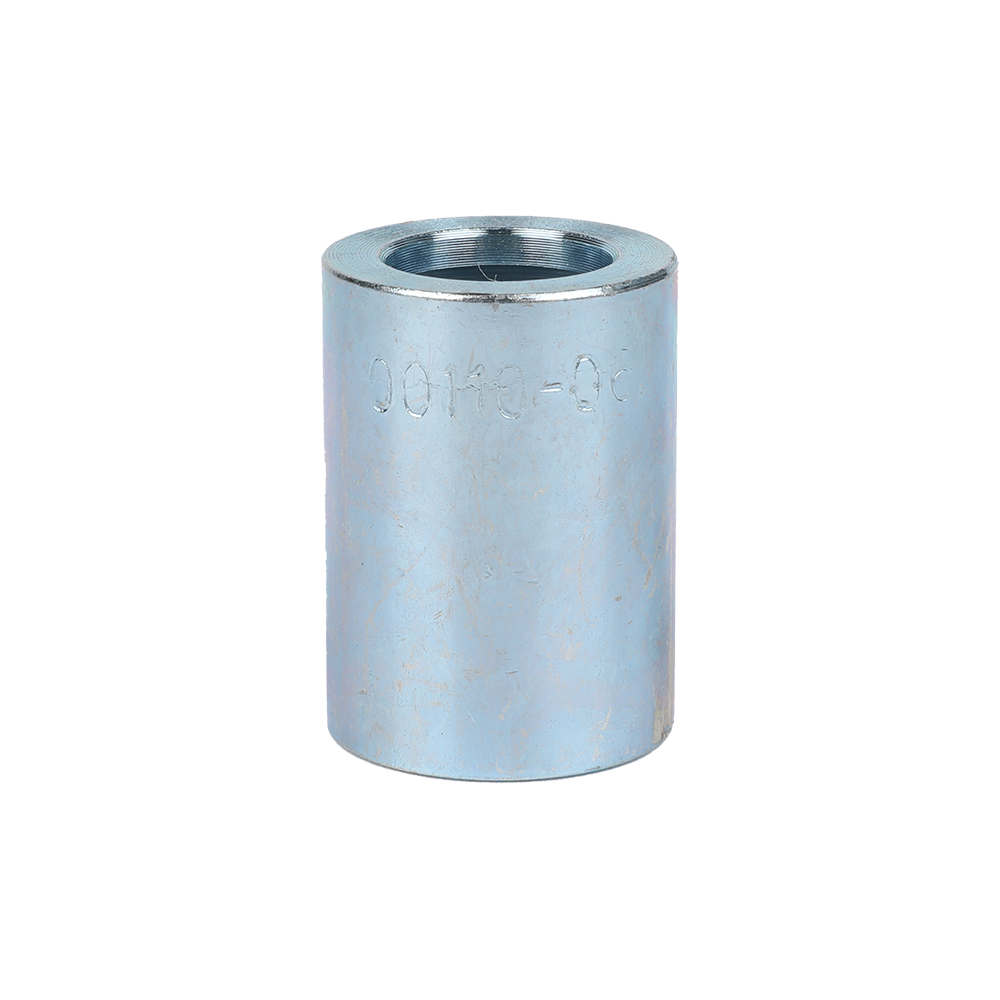

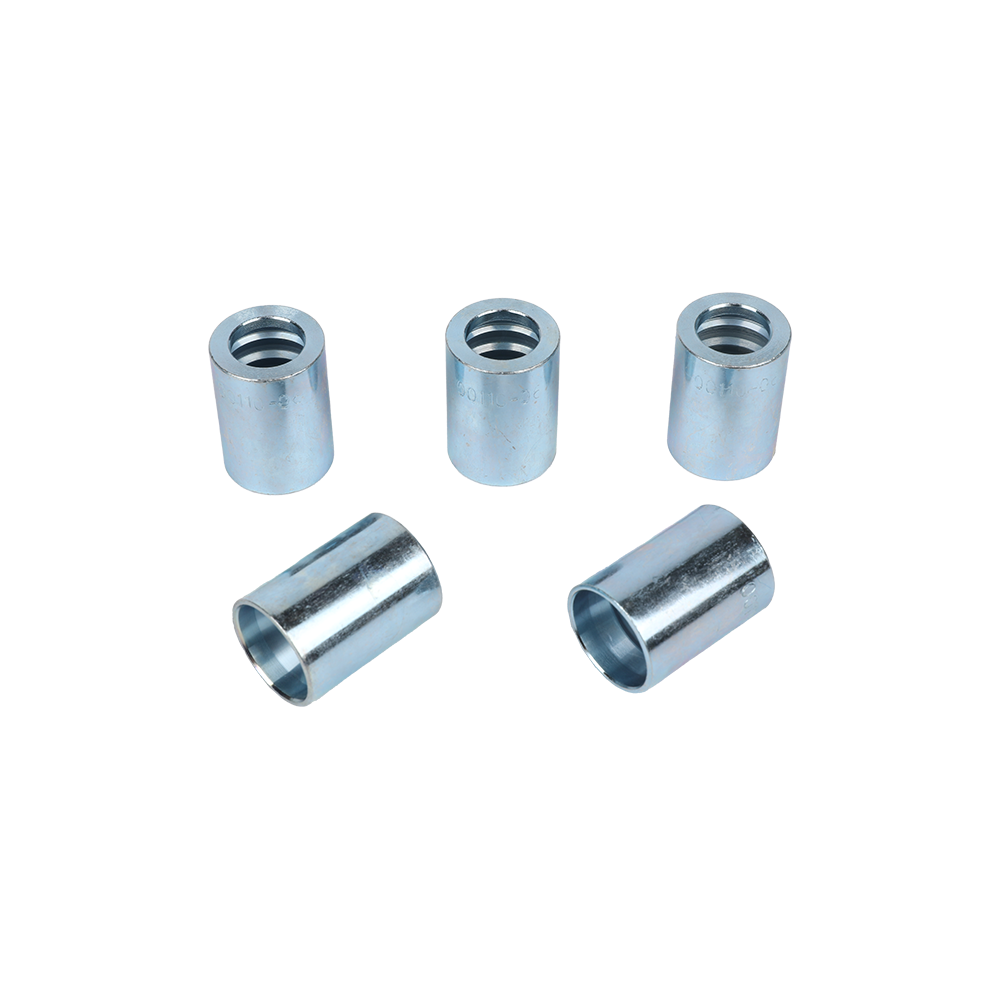

Hose sleeve 00110, special hydraulic hose sleeve coupling for hydraulic machinery is an excellent product specially designed for hydraulic machinery, aiming to provide excellent connection and protection solutions for hoses in hydraulic systems. It is precision-crafted from high-quality materials for exceptional durability and reliability.
This hose sleeve 00110 has a unique design to perfectly fit hydraulic hoses, providing strong connection force and excellent sealing performance. Its installation process is simple and quick, just put the sleeve on the hose and pressurize it with a special tool to achieve a reliable connection.
Hose Sleeves 00110 not only provide excellent connection capabilities, but also provide additional protection for hydraulic hoses. It can effectively prevent the wear and tear of the hose and the erosion of the external environment, prolong the service life of the hose, and improve the reliability and safety of the system.
Our Hose Sleeve 00110 undergoes strict quality control to ensure that it complies with industry standards and specifications. We are committed to providing high-quality products to meet the demanding reliability and performance requirements in the field of hydraulic machinery.
Contact Us
  • Specifications
  • Leave Us A Message
  • Part NO. Hose Dimension (mm)
    DN Dash L
    00110-03A 5 03 23
    00110-04A 6 04 30.5
    00110-05A 8 05 30
    00110-06A 10 06 32
    00110-08A 12 08 34
    00110-10A 16 10 37
    00110-12A 20 12 42
    00110-16A 25 16 51
