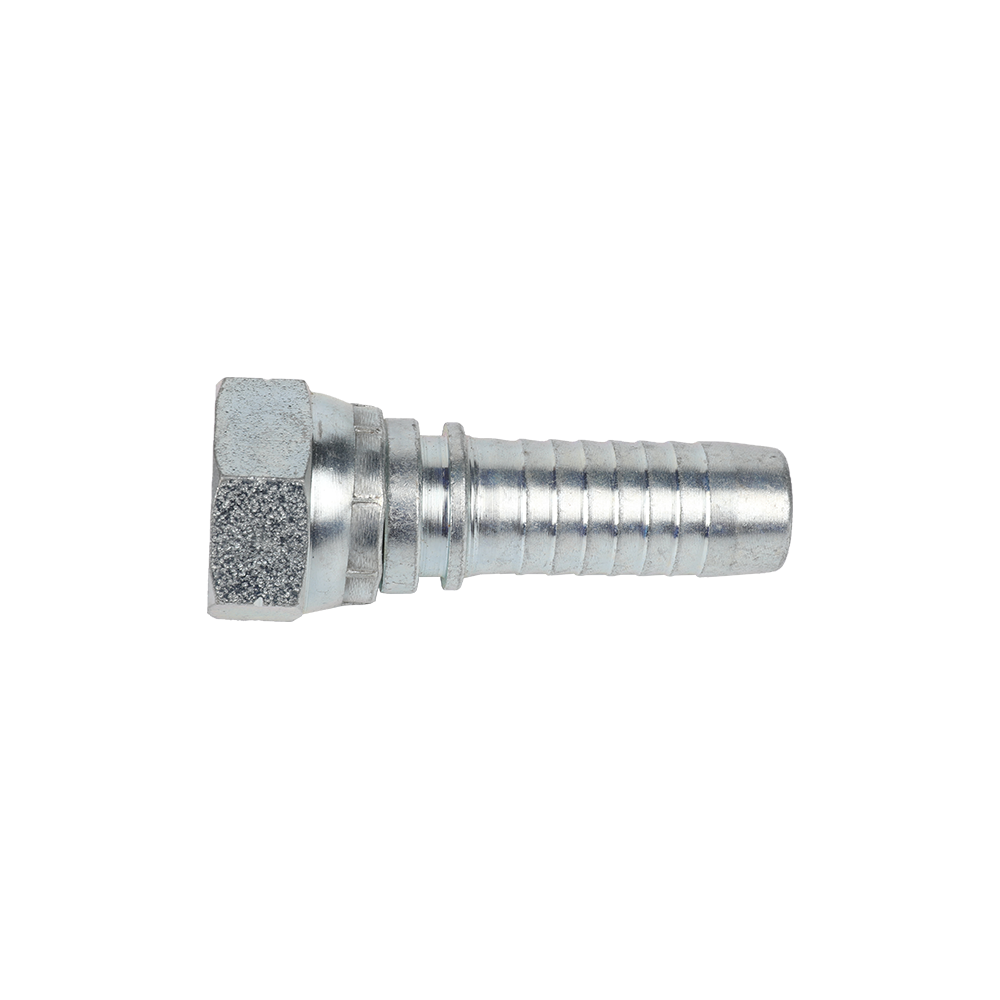

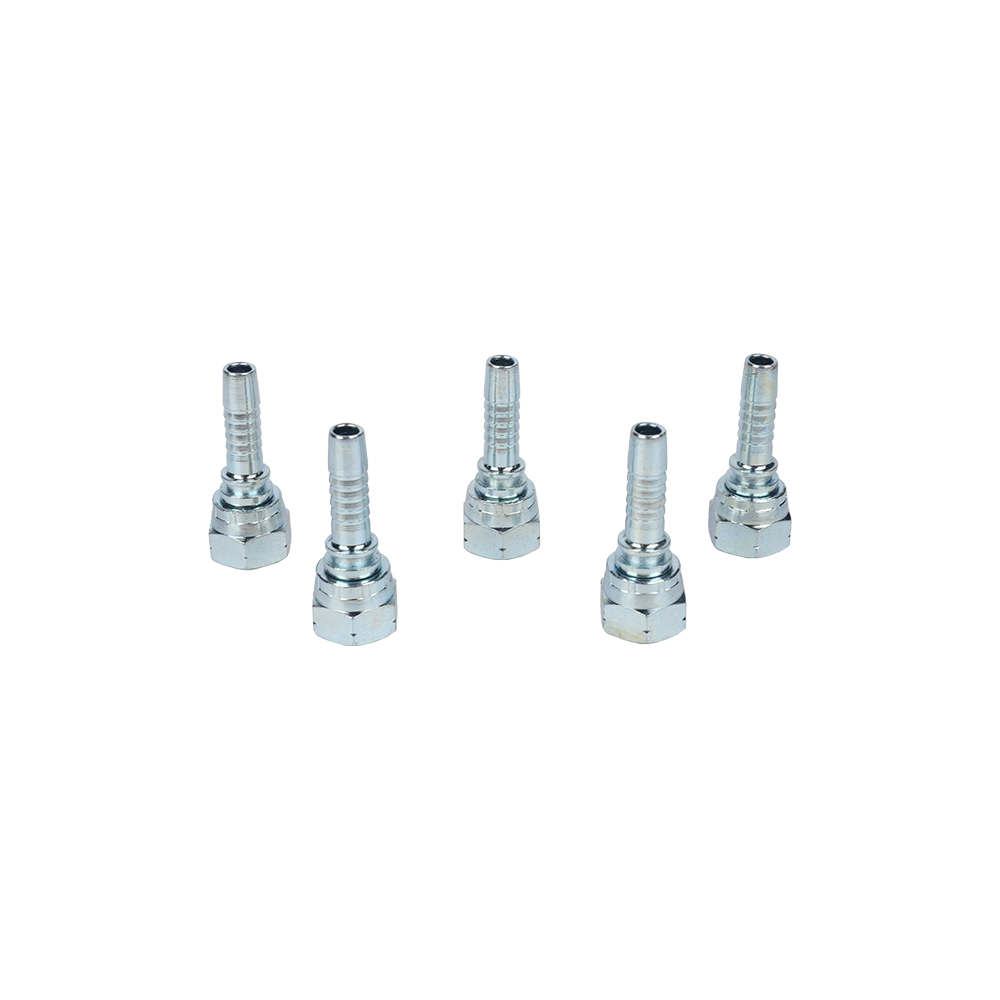

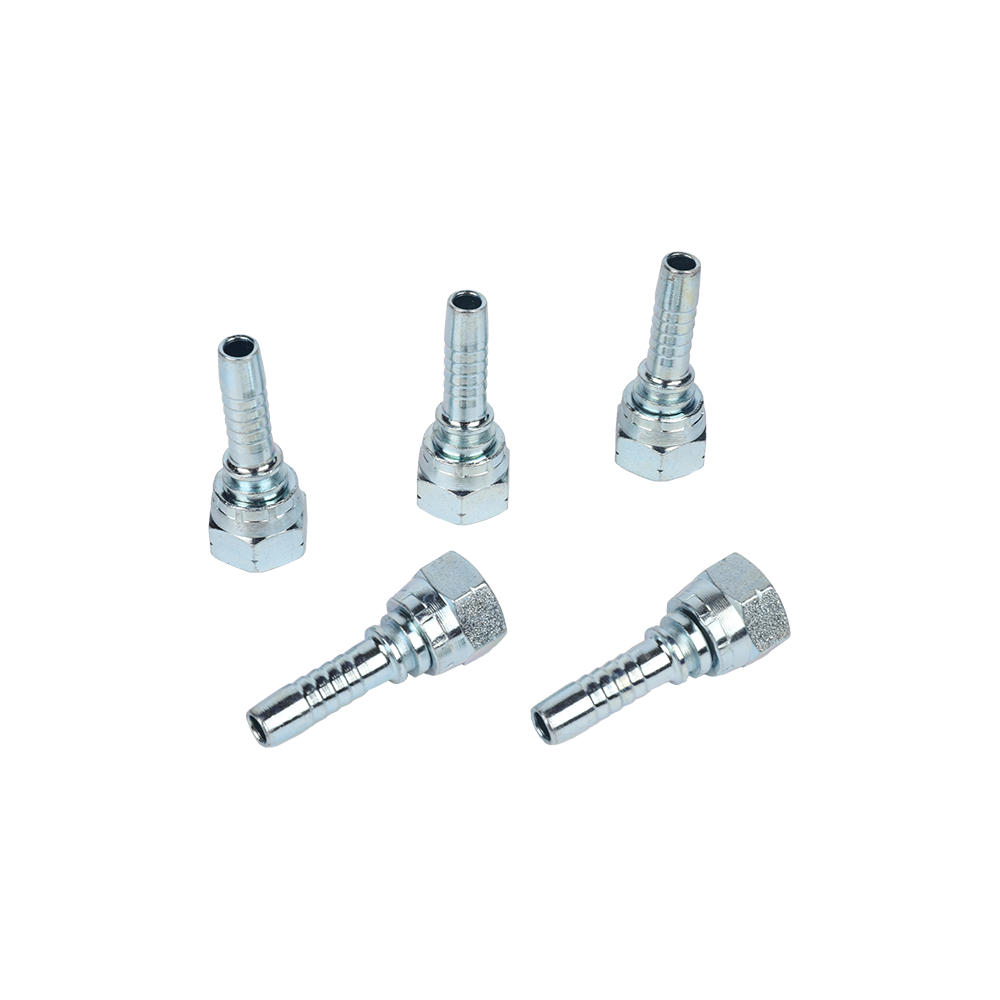

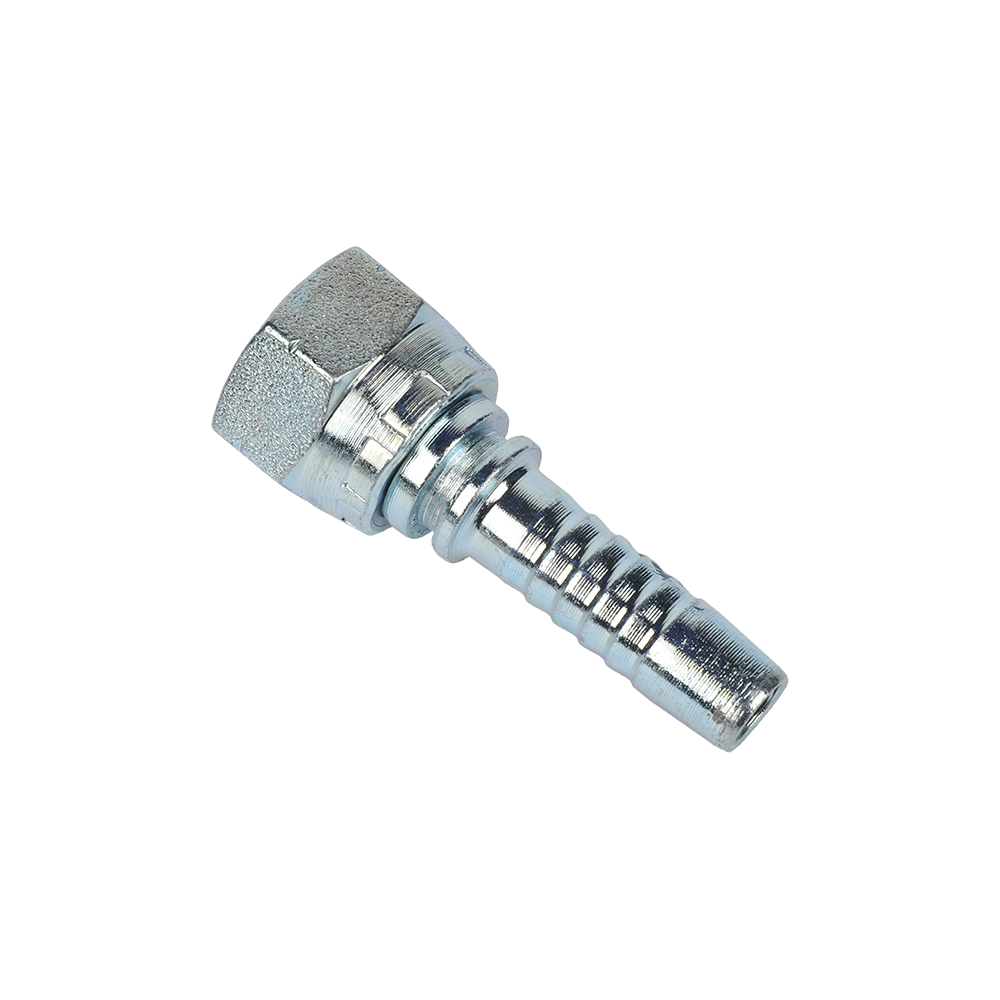

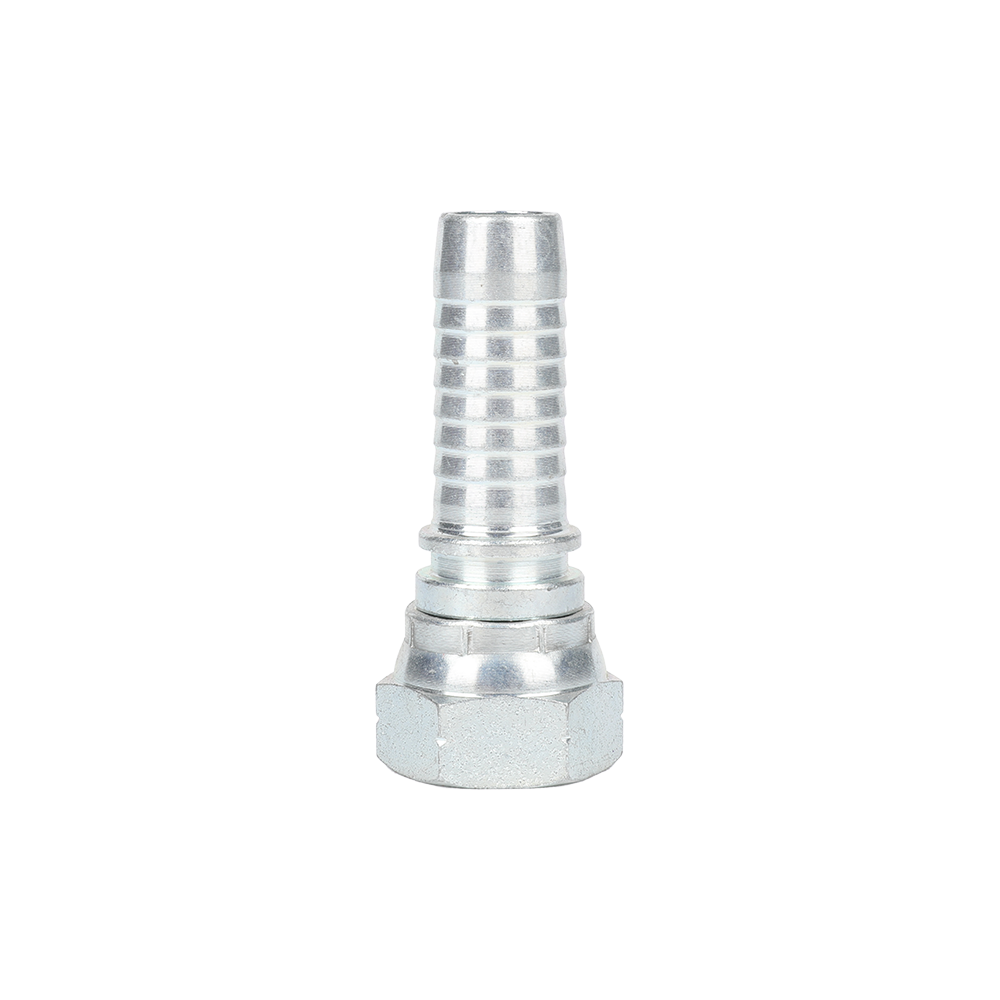

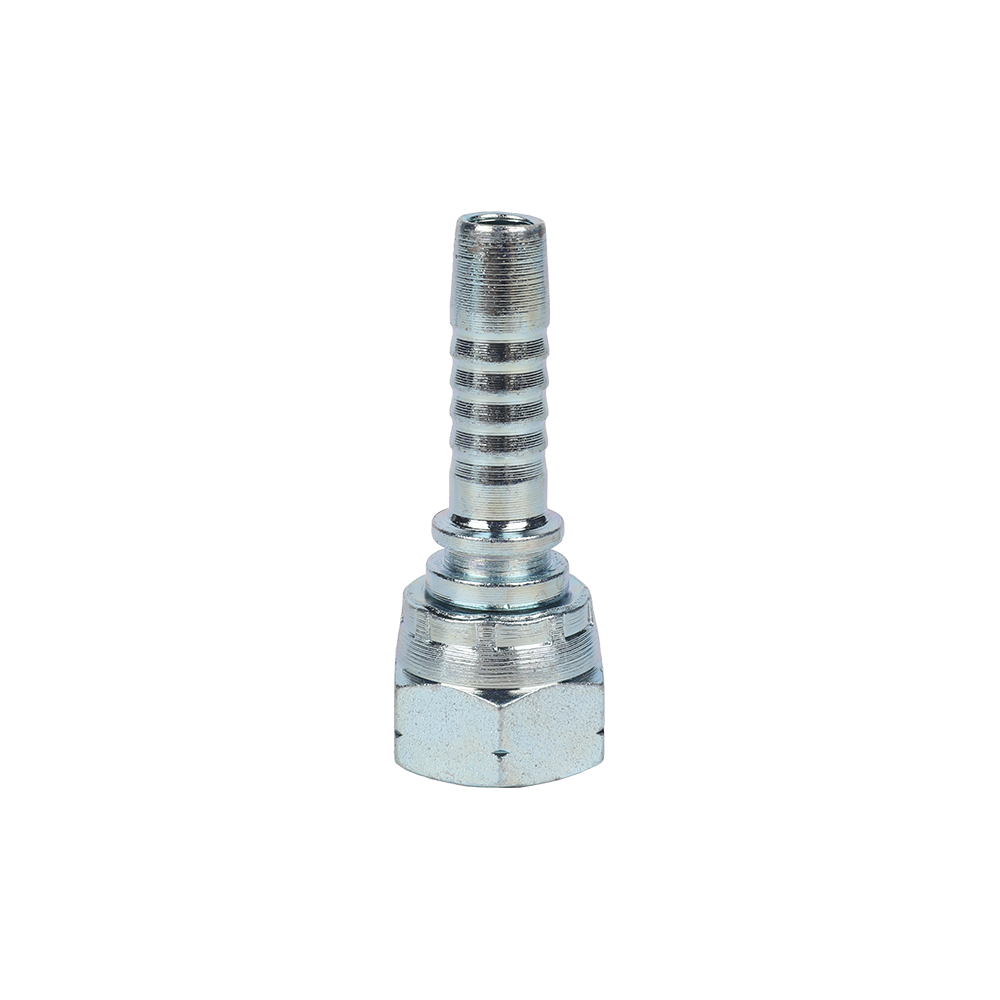

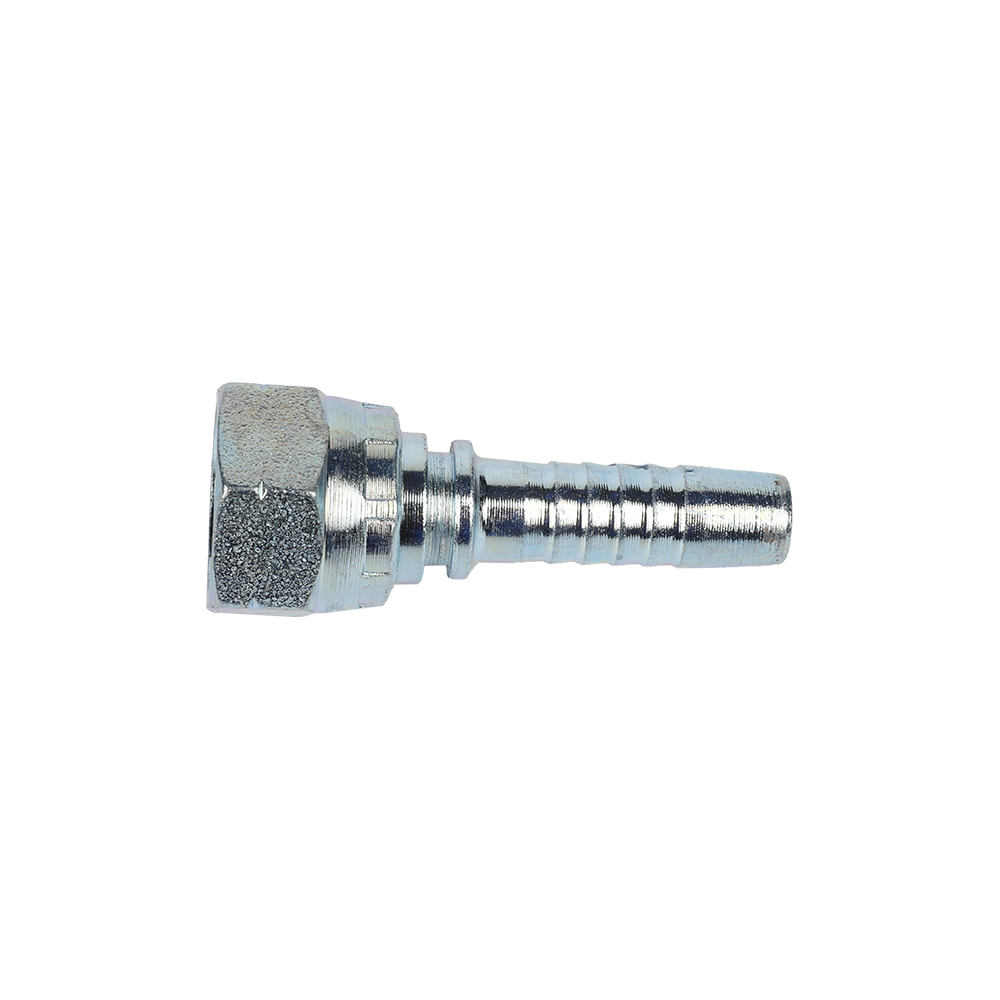

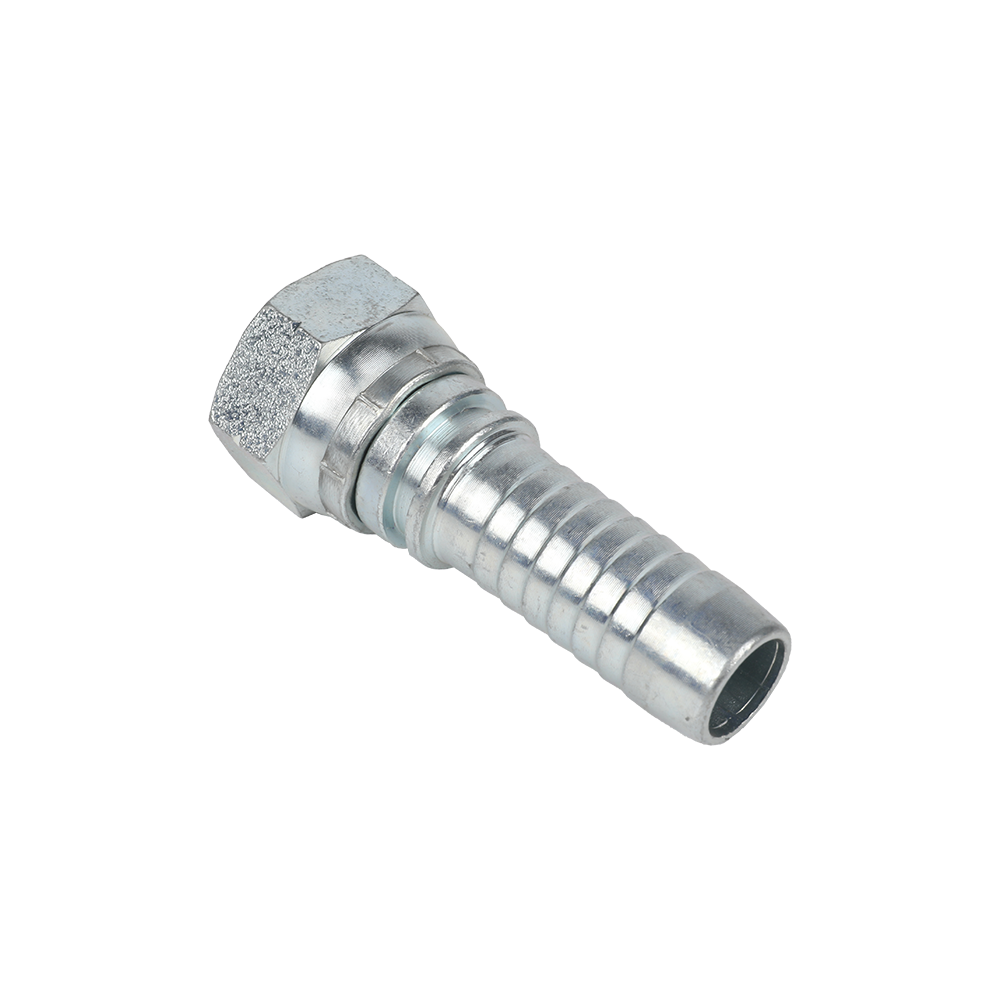

BSP Hose Fiting 22611, Female Hydraulic Hose Coupling 60° Tapered Silver Gold Carbon Steel

BSP Hose Fitting

Contact Us
  • Specifications
  • Leave Us A Message
  • Part NO. Thread Hose Dimension (mm)
    DN Dash A C S2
    22611-02-03 G1/8"x28 5 03 15 5.5 14
    22611-02-04 G1/8"x28 6 04 15 5.5 14
    22611-04-03 G1/4"X19 5 03 17 5.5 19
    22611-04-04 G1/4"X19 6 04 18 5.5 19
    22611-04-05 G1/4"X19 8 05 18 5.5 19
    22611-04-06 G1/4"X19 10 06 18 5.5 19
    22611-06-04 G3/8"X19 6 04 19 6.3 22
    22611-06-05 G3/8"X19 8 05 19 6.3 22
    22611-06-06 G3/8"X19 10 06 19.5 6.3 22
    22611-06-08 G3/8"X19 12 08 19.5 6.3 22
    22611-08-06T G1/2"X14 10 06 21 7.5 27
    22611-08-08 G1/2"X14 12 08 21.5 7.5 27
    22611-10-08 G5/8"X14 12 08 22 9.5 30
    22611-10-10 G5/8"X14 16 10 23.5 9.5 30
    22611-12-08T G3/4"X14 12 08 22 10.9 32
    22611-12-10 G3/4"X14 16 10 24 10.9 32
    22611-12-12 G3/4"X14 20 12 24 10.9 32
    22611-16-12T G1"X11 20 12 24 11.7 41
    22611-16-14 G1"X11 22 14 26 11.7 41
    22611-16-16 G1"X11 25 16 27 11.7 41
    22611-20-16T G1.1/4"X11 25 16 27.5 11 50
    22611-20- 20W G1.1/4"X11 32 20 30.5 11 50
    22611-24-20T G1.1/2"X11 32 20 32 13 55
    22611-24-24W G1.1/2"X11 40 24 32 13 55
    22611-32-24T G2"X11 40 24 30 16 70
    22611-32-32W G2"X11 50 32 31.9 16 70
    Note:1、For braided hoses. 2、If for spiral hoses,Part No. is H22612-XX-XX.
